¶ Connect Multi-QIDI BOX
QIDI Box Expansion Kit Purchasing Link
The expansion kit is currently on its way to the overseas warehouse and is expected to be available for purchase once it arrives.

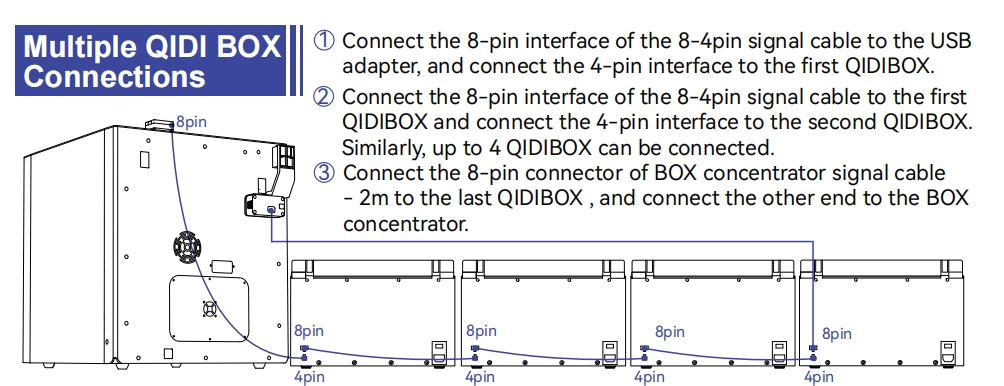

¶ Connecting the Multi-QIDI BOX to the Printer

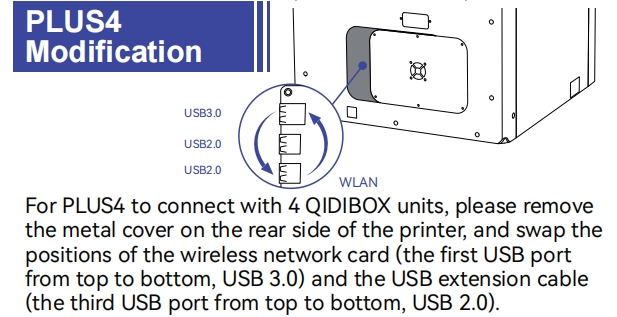

Note: If you connect more than 3 boxes with Plus4, you need to use the printer's 3.0 USB port.

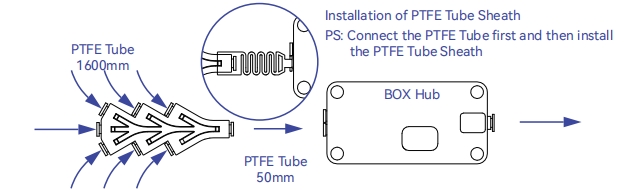

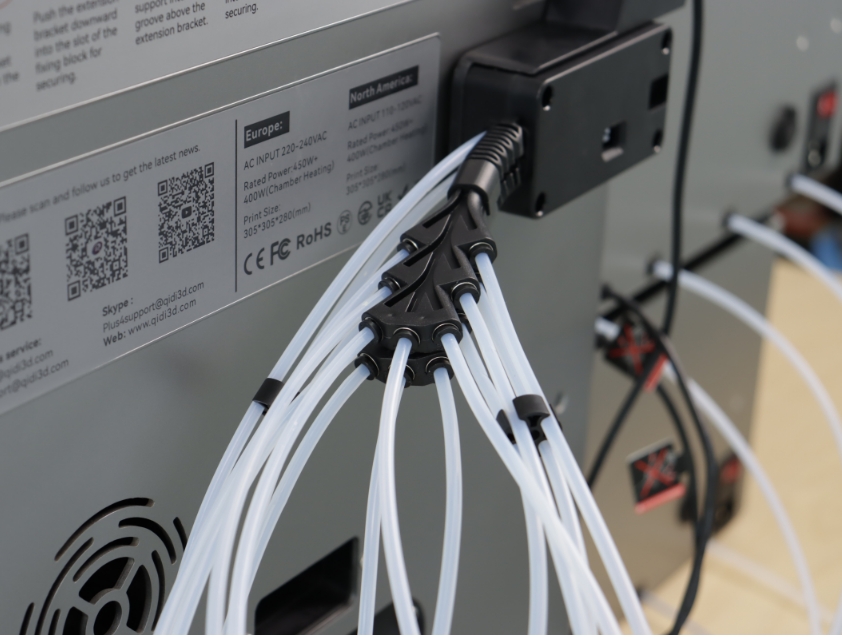

¶ Connecting the PTFE Tube to the Printer
This requires 7-in-1 PTFE tube connector.

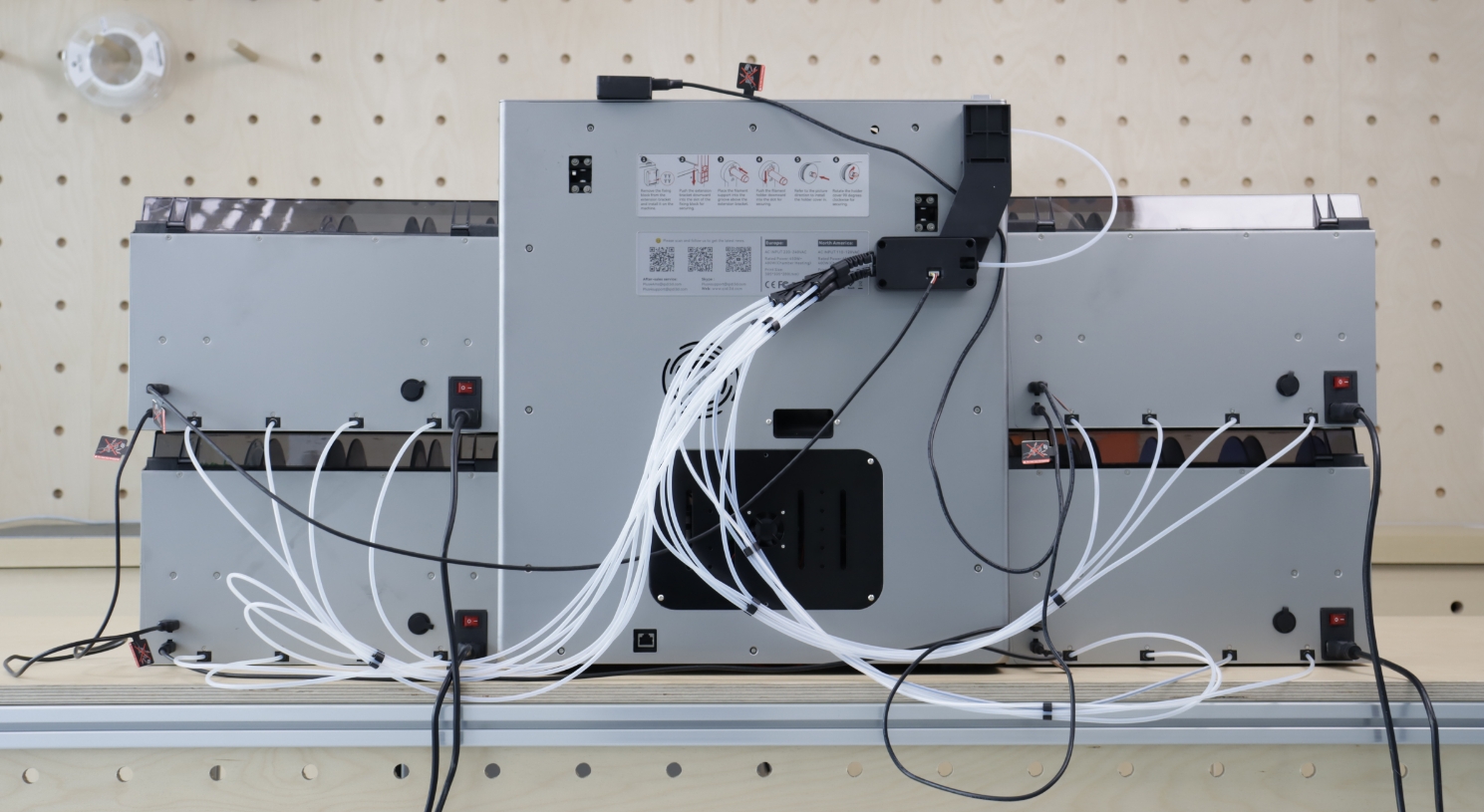

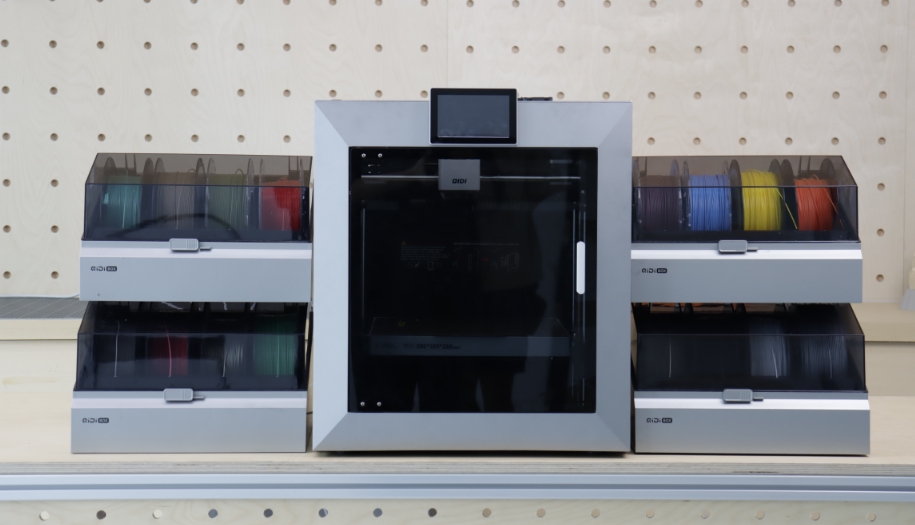

¶ Successfully connected multiple boxes
¶ QIDI Plus 4 Multi-Adapter (Printable Community Design)
This is a community-made, 3D-printable Multi-Adapter for the QIDI Plus 4 that allows users to run up to four QIDI Boxes on a single printer.
The design was generously created and shared by RVfan, and is available for download on Printables.
You can access the files here:
https://www.printables.com/model/1413613-qidi-plus-4-multi-adapter-run-up-to-4-qidi-boxes-o/files
