¶ How to Connect Extruder Cooler to Max4
¶ Guide Video

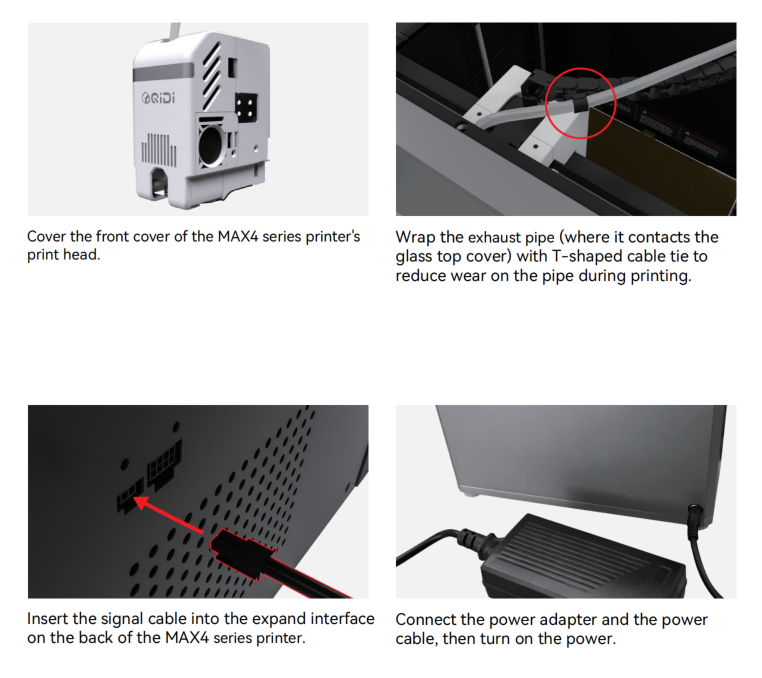

¶ Step 1
¶ Step 2
¶ Step 3
¶ Step 4
¶ Step 5

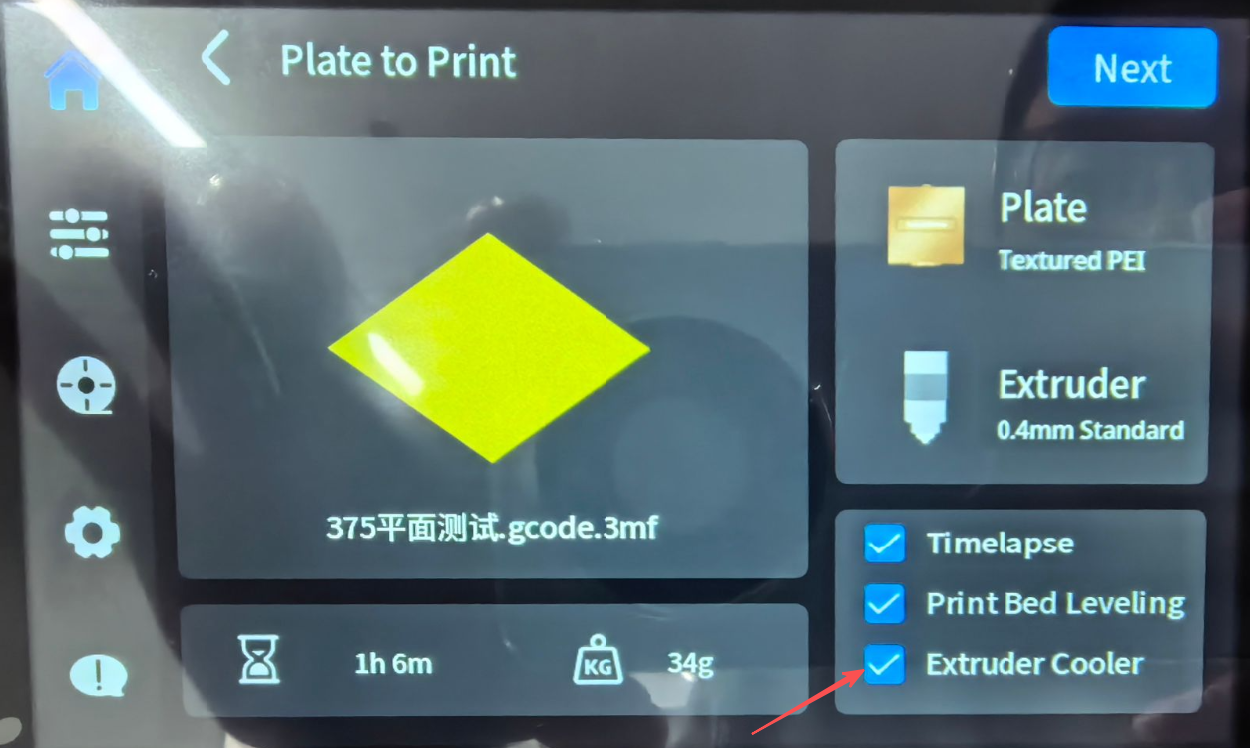

After selecting a print file and starting the print, please check the Extruder Cooler enabled.
Then the Extruder Cooler will run automatically during printing.
Note:

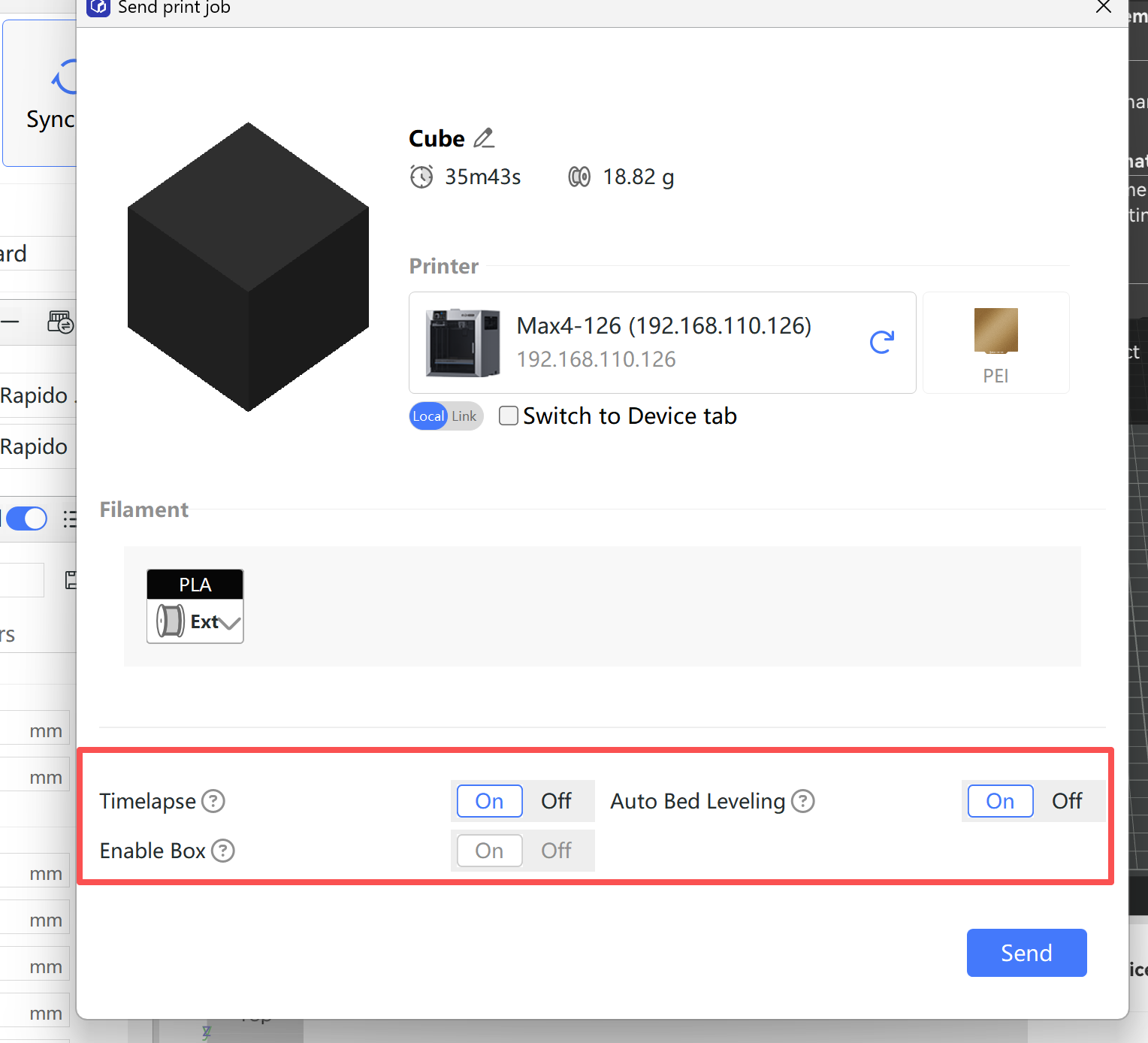

If the Extruder Cooler function was enabled during a previous print, it will be enabled by default when you slice and send subsequent print jobs using QIDI Studio.
If you do not want to use the Extruder Cooler, you can disable it manually in Step 4 of the setup interface.
¶ Notes:
-
The Extruder Cooler will automatically turn off after the print job is completed.
-
At present, the Extruder Cooler needs to be enabled manually when printing starts.
-
An upcoming software update will add support for automatically enabling the Extruder Cooler when a print job is sent from the slicer. Stay tuned.
¶ End
If you have any problems and issues,please contact with After-Sales Support.
